Link: YouKits EK1C 3 band CW transceiver

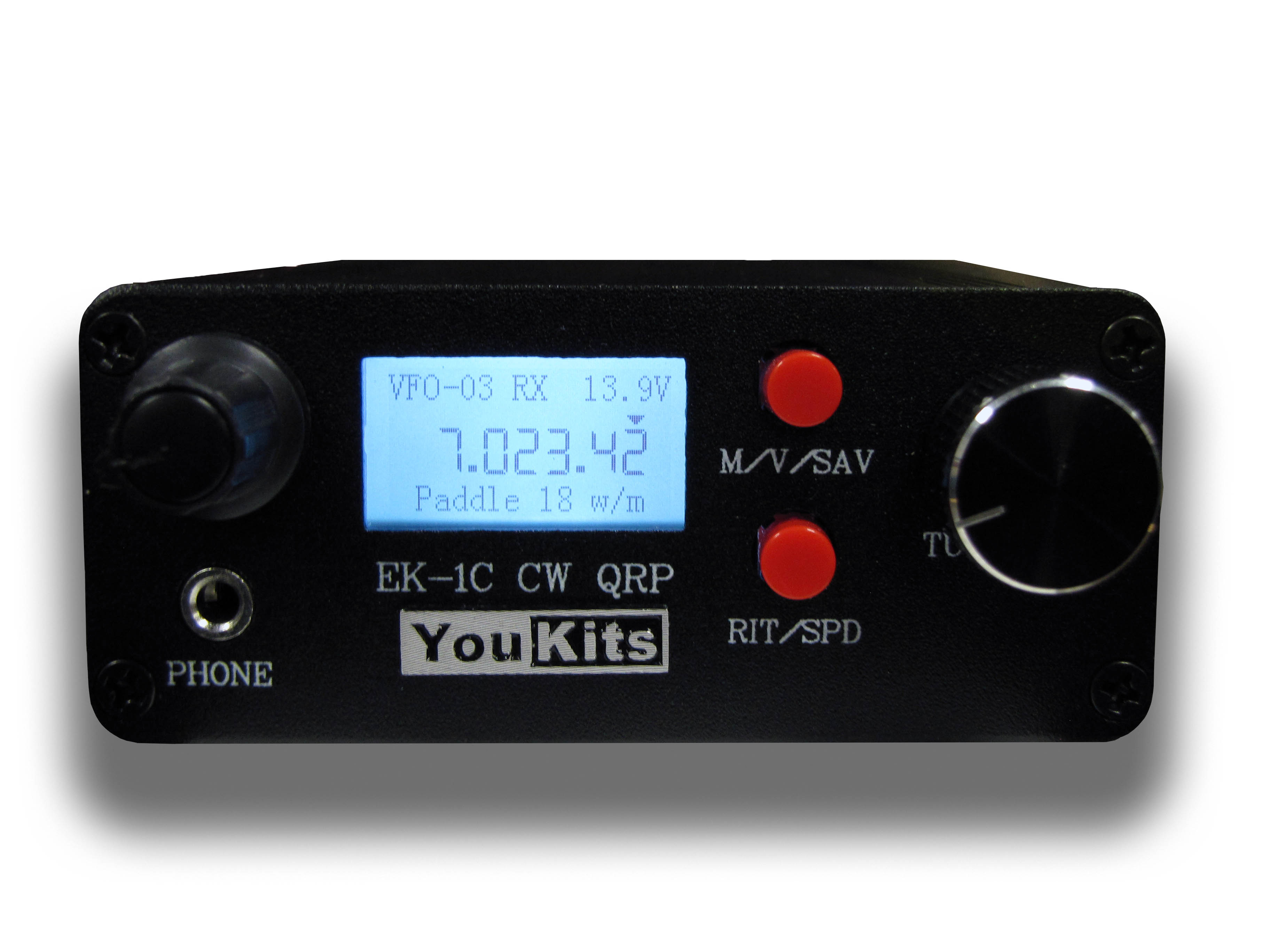

New for 2017:  EK1C 3 band QRP CW transceiver.  20, 30, 40 meters.  Sold as an assembled item only.

Size:  HxWxD  1.5" x 3.5" x 5"

Weight:  9.8 oz.

DC input: 9-15 VDC

Power Consumption:  RX 70mA.  TX: 900 mA at 12 VDC

RX: 5.9-16 MHz.

TX: 7.0-7.3, 10.1-10.15, 14.0-14.35 MHz.

IF: 50 MHz DDS

Output power:  5W at 12 VDC supply voltage

CW Sidetone: 700 Hz

Internal keyer: 5-40 WPM adjustable.

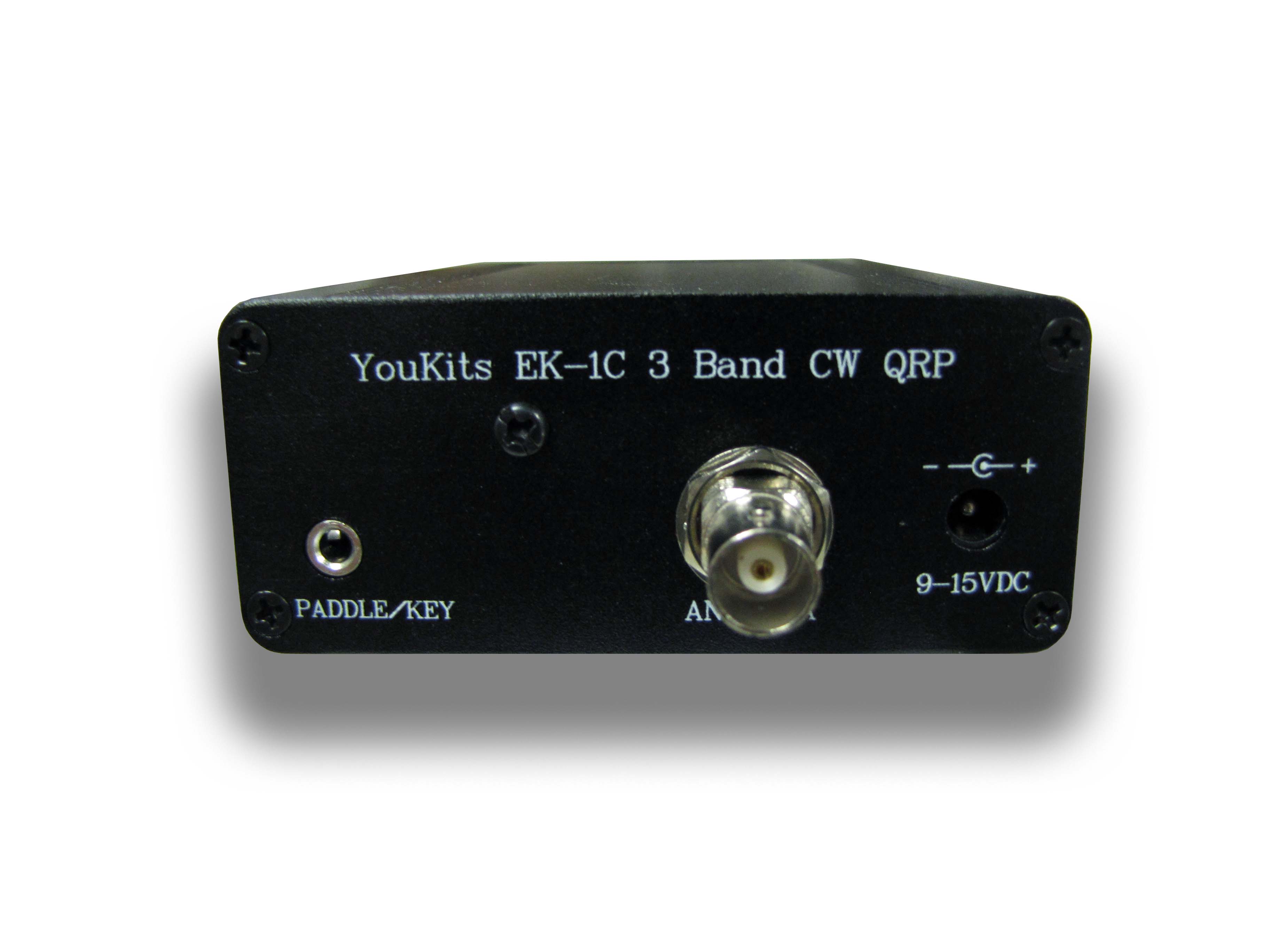

Antenna connector: male BNC

#18650 internal battery pack and charging cable is sold as an optional accessory.

This item is supplied by YouKits without a DC power cable.  Vibroplex is making an inexpensive DC power pigtail available for them.

Operation manual can be viewed by clicking this link.

!

YouKits EK1C

3 band 20/30/40m CW transceiver.

BNC to SO-239 adapter

BNC male to SO-239 female adapter.  For conversion to coax cables using standard male PL-259 connectors.  Order quantity 2 for DP-1, quantity 1 for all other YouKits products.

#18650 2200 mAh battery pack + cable

Optional #18650 2200 mAh rechargeable battery pack + 110 VAC charging cable.

YouKits 5.5x2.1mm male DC power pigtail

YouKits EK1C, HB1B, SK-1A are supplied without DC power cable.  Vibroplex is making available an inexpensive DC pigtail.  Male connector, 8 inches DC red/black cable attached.
